Socket Weld Union CU-SW

Hydraulic socket weld fitting available in class 3000 and 6000

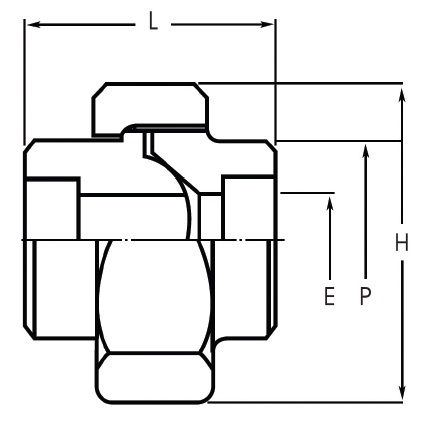

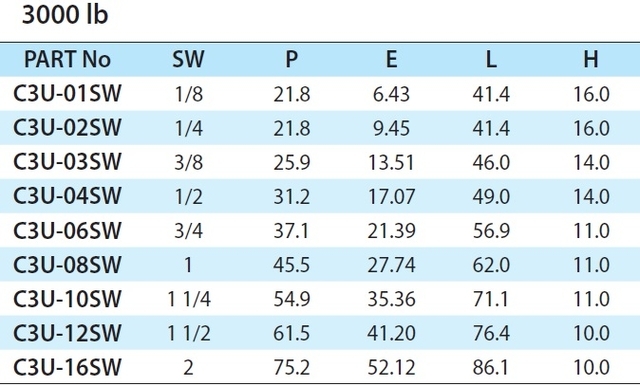

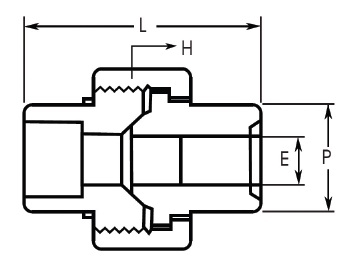

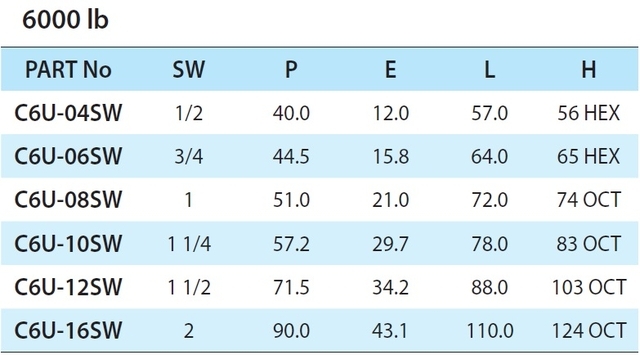

Drawing Drawing Table 3000 LB Table 6000 LB
Article Description - Size Material Quantity
C3U-01SW Socket Weld Union - 1/8'' - Class 3000
C3U-02SW Socket Weld Union - 1/4'' - Class 3000
C3U-03SW Socket Weld Union - 3/8'' - Class 3000
C3U-04SW Socket Weld Union - 1/2'' - Class 3000
C3U-06SW Socket Weld Unoin - 3/4'' - Class 3000
C3U-08SW Socket Weld Unon - 1'' - Class 3000
C3U-10SW Socket Weld Union - 1-1/4'' - Class 3000
C3U-12SW Socket Weld Union - 1-1/2'' - Class 3000
C3U-16SW Socket Weld Union - 2'' - Class 3000

C6U-04SW Socket Weld Union - 1/2'' - Class 6000
C6U-06SW Socket Weld Unoin - 3/4'' - Class 6000
C6U-08SW Socket Weld Unon - 1'' - Class 6000
C6U-10SW Socket Weld Union - 1-1/4'' - Class 6000
C6U-12SW Socket Weld Union - 1-1/2'' - Class 6000
C6U-16SW Socket Weld Union - 2'' - Class 6000
