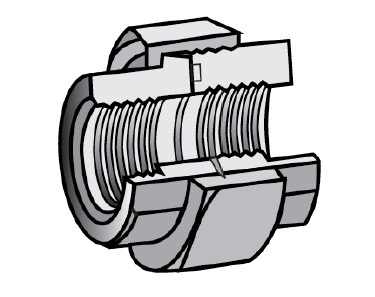

Thread Union CU

Hydraulic thread fitting available in class 3000 and 6000

Article	Description - Size	Material	Quantity

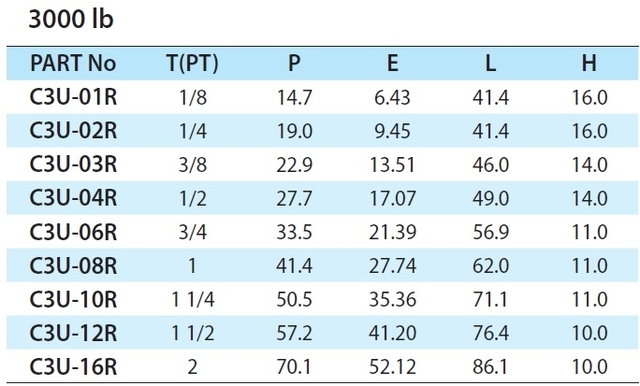

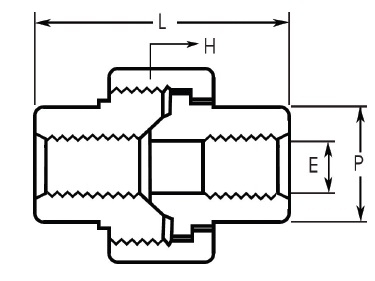

C3U-01R	Thread Union - 1/8" BSPT - Class 3000
C3U-02R	Thread Union - 1/4'' BSPT - Class 3000
C3U-03R	Thread Union - 3/8'' BSPT - Class 3000
C3U-04R	Thread Union - 1/2'' BSPT - Class 3000
C3U-06R	Thread Union - 3/4'' BSPT - Class 3000
C3U-08R	Thread Union - 1'' BSPT - Class 3000
C3U-10R	Thread Union - 1-1/4'' BSPT - Class 3000
C3U-12R	Thread Union - 1-1/2'' BSPT - Class 3000
C3U-16R	Thread Union - 2'' BSPT - Class 3000

C3U-01N	Thread Union - 1/8" NPT - Class 3000
C3U-02N	Thread Union - 1/4'' NPT - Class 3000
C3U-03N	Thread Union - 3/8'' NPT - Class 3000
C3U-04N	Thread Union - 1/2'' NPT - Class 3000
C3U-06N	Thread Union - 3/4'' NPT - Class 3000
C3U-08N	Thread Union - 1'' NPT - Class 3000
C3U-10N	Thread Union - 1-1/4'' NPT - Class 3000
C3U-12N	Thread Union - 1-1/2'' NPT - Class 3000
C3U-16N	Thread Union - 2'' NPT - Class 3000

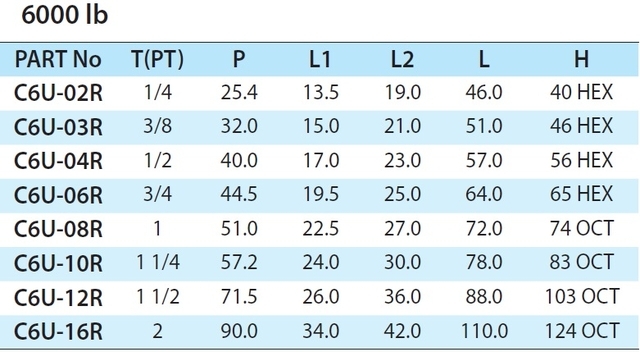

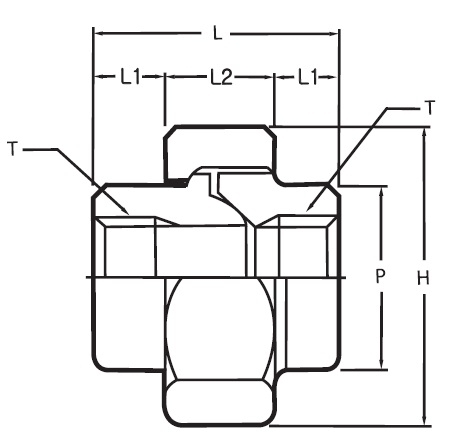

C6U-01R	Thread Union - 1/8" BSPT - Class 6000
C6U-02R	Thread Union - 1/4'' BSPT - Class 6000
C6U-03R	Thread Union - 3/8'' BSPT - Class 6000
C6U-04R	Thread Union - 1/2'' BSPT - Class 6000
C6U-06R	Thread Union - 3/4'' BSPT - Class 6000
C6U-08R	Thread Union - 1'' BSPT - Class 6000
C6U-10R	Thread Union - 1-1/4'' BSPT - Class 6000
C6U-12R	Thread Union - 1-1/2'' BSPT - Class 6000
C6U-16R	Thread Union - 2'' BSPT - Class 6000

C6U-01N	Thread Union - 1/8" NPT - Class 6000
C6U-02N	Thread Union - 1/4'' NPT - Class 6000
C6U-03N	Thread Union - 3/8'' NPT - Class 6000
C6U-04N	Thread Union - 1/2'' NPT - Class 6000
C6U-06N	Thread Union - 3/4'' NPT - Class 6000
C6U-08N	Thread Union - 1'' NPT - Class 6000
C6U-10N	Thread Union - 1-1/4'' NPT - Class 6000
C6U-12N	Thread Union - 1-1/2'' NPT - Class 6000
C6U-16N	Thread Union - 2'' NPT - Class 6000
