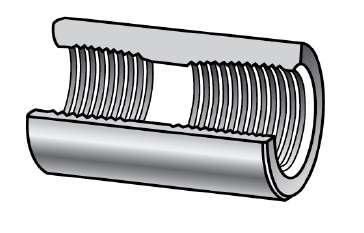

Full Coupling CFC
Hydraulic pipe thread fitting BSPT or NPT available in class 2000, 3000 or 6000

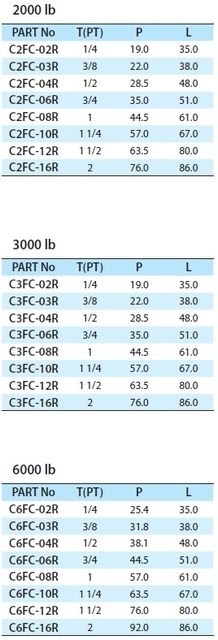

| Article | Description - Size | Material | Quantity | |
|---|---|---|---|---|
| C2FC-02R | Full Coupling 1/4'' BSPT - Class 2000 | |||
| C2FC-03R | Full Coupling 3/8'' BSPT - Class 2000 | |||
| C2FC-04R | Full Coupling 1/2'' BSPT - Class 2000 | |||
| C2FC-06R | Full Coupling 3/4'' BSPT - Class 2000 | |||
| C2FC-08R | Full Coupling 1'' BSPT - Class 2000 | |||
| C2FC-10R | Full Coupling 1-1/4'' BSPT - Class 2000 | |||
| C2FC-12R | Full Coupling 1-1/2'' BSPT - Class 2000 | |||
| C2FC-16R | Full Coupling 2'' BSPT - Class 2000 | |||
| C2FC-02N | Full Coupling 1/4'' NPT - Class 2000 | |||
| C2FC-03N | Full Coupling 3/8'' NPT - Class 2000 | |||
| C2FC-04N | Full Coupling 1/2'' NPT - Class 2000 | |||
| C2FC-06N | Full Coupling 3/4'' NPT - Class 2000 | |||
| C2FC-08N | Full Coupling 1'' NPT - Class 2000 | |||
| C2FC-10N | Full Coupling 1-1/4'' NPT - Class 2000 | |||
| C2FC-12N | Full Coupling 1-1/2'' NPT - Class 2000 | |||
| C2FC-16N | Full Coupling 2'' NPT - Class 2000 | |||
| C3FC-02R | Full Coupling 1/4'' BSPT - Class 3000 | |||
| C3FC-03R | Full Coupling 3/8'' BSPT - Class 3000 | |||
| C3FC-04R | Full Coupling 1/2'' BSPT - Class 3000 | |||
| C3FC-06R | Full Coupling 3/4'' BSPT - Class 3000 | |||
| C3FC-08R | Full Coupling 1'' BSPT - Class 3000 | |||
| C3FC-10R | Full Coupling 1-1/4'' BSPT - Class 3000 | |||
| C3FC-12R | Full Coupling 1-1/2'' BSPT - Class 3000 | |||
| C3FC-16R | Full Coupling 2'' BSPT - Class 3000 | |||
| C3FC-02N | Full Coupling 1/4'' NPT - Class 3000 | |||
| C3FC-03N | Full Coupling 3/8'' NPT - Class 3000 | |||
| C3FC-04N | Full Coupling 1/2'' NPT - Class 3000 | |||
| C3FC-06N | Full Coupling 3/4'' NPT - Class 3000 | |||
| C3FC-08N | Full Coupling 1'' NPT - Class 3000 | |||
| C3FC-10N | Full Coupling 1-1/4'' NPT - Class 3000 | |||
| C3FC-12N | Full Coupling 1-1/2'' NPT - Class 3000 | |||
| C3FC-16N | Full Coupling 2'' NPT - Class 3000 | |||
| C6FC-02R | Full Coupling 1/4'' BSPT - Class 6000 | |||
| C6FC-03R | Full Coupling 3/8'' BSPT - Class 6000 | |||
| C6FC-04R | Full Coupling 1/2'' BSPT - Class 6000 | |||
| C6FC-06R | Full Coupling 3/4'' BSPT - Class 6000 | |||
| C6FC-08R | Full Coupling 1'' BSPT - Class 6000 | |||
| C6FC-10R | Full Coupling 1-1/4'' BSPT - Class 6000 | |||
| C6FC-12R | Full Coupling 1-1/2'' BSPT - Class 6000 | |||
| C6FC-16R | Full Coupling 2'' BSPT - Class 6000 | |||
| C6FC-02N | Full Coupling 1/4'' NPT - Class 6000 | |||
| C6FC-03N | Full Coupling 3/8'' NPT - Class 6000 | |||
| C6FC-04N | Full Coupling 1/2'' NPT - Class 6000 | |||
| C6FC-06N | Full Coupling 3/4'' NPT - Class 6000 | |||
| C6FC-08N | Full Coupling 1'' NPT - Class 6000 | |||
| C6FC-10N | Full Coupling 1-1/4'' NPT - Class 6000 | |||
| C6FC-12N | Full Coupling 1-1/2'' NPT - Class 6000 | |||
| C6FC-16N | Full Coupling 2'' NPT - Class 6000 |
