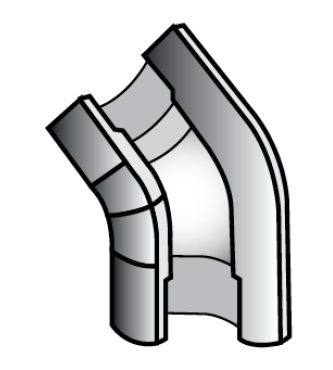

45° Elbow

Hydraulic socket weld fitting available in class 3000, 6000 or 9000

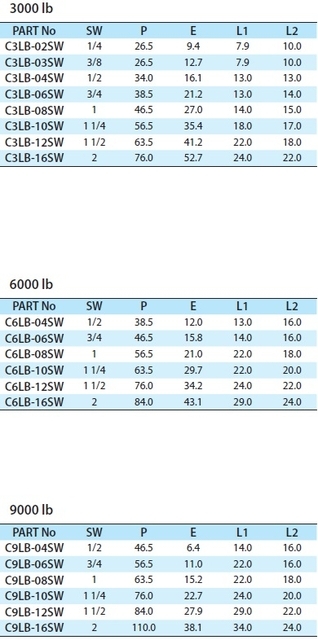

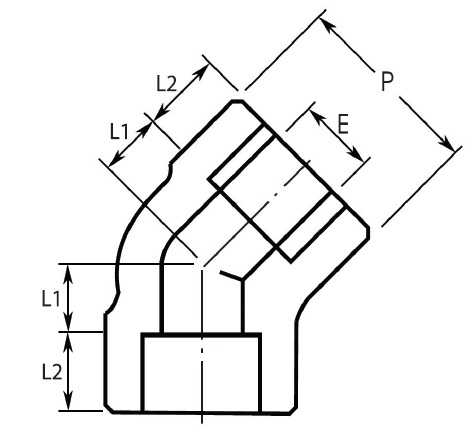

Table Drawing
Article Description - Size Material Quantity
C3LB-02SW 45° Elbow - 1/4'' - Class 3000
C3LB-03SW 45° Elbow - 3/8'' - Class 3000
C3LB-04SW 45° Elbow - 1/2' - Class 3000
C3LB-06SW 45° Elbow - 3/4' - Class 3000
C3LB-08SW 45° Elbow - 1'' - Class 3000
C3LB-10SW 45° Elbow - 1-1/4'' - Class 3000
C3LB-12SW 45° Elbow - 1-1/2'' - Class 3000
C3LB-16SW 45° Elbow - 2'' - Class 3000

C6LB-04SW 45° Elbow - 1/2' - Class 6000
C6LB-06SW 45° Elbow - 3/4' - Class 6000
C6LB-08SW 45° Elbow - 1'' - Class 6000
C6LB-10SW 45° Elbow - 1-1/4'' - Class 6000
C6LB-12SW 45° Elbow - 1-1/2'' - Class 6000
C6LB-16SW 45° Elbow - 2'' - Class 6000

C9LB-04SW 45° Elbow - 1/2' - Class 9000
C9LB-06SW 45° Elbow - 3/4' - Class 9000
C9LB-08SW 45° Elbow - 1'' - Class 9000
C9LB-10SW 45° Elbow - 1-1/4'' - Class 9000
C9LB-12SW 45° Elbow - 1-1/2'' - Class 9000
C9LB-16SW 45° Elbow - 2'' - Class 9000
