Reducing Union

Connects Fractional or Metric Tubing

* Usefull on a straight connection with different tube sizes

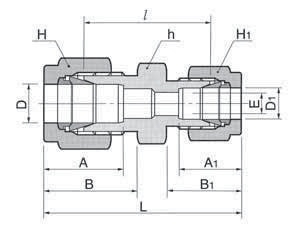

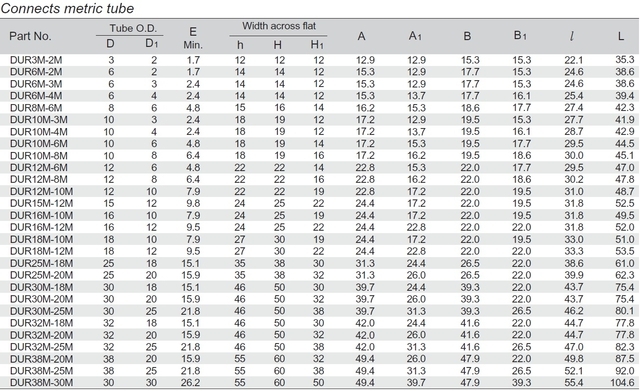

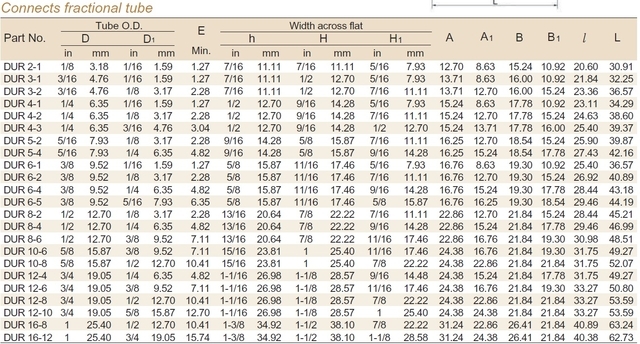

Table Fractional Table Metric Drawing
Article Description - Size Material Quantity
DUR 2-1 Reducing Union - 1/8'' to 1/16''
DUR 3-1 Reducing Union - 3/16'' to 1/16
DUR 3-2 Reducing Union - 3/16'' to 1/8''
DUR 4-1 Reducing Union - 1/4'' to 1/16''
DUR 4-2 Reducing Union - 1/4'' to 1/8''
DUR 4-3 Reducing Union - 1/4'' to 3/16''
DUR 5-2 Reducing Union - 5/16'' to 1/8''
DUR 5-4 Reducing Union - 5/16'' to 1/4''
DUR 6-1 Reducing Union - 3/8'' to 1/16''
DUR 6-2 Reducing Union - 3/8'' to 1/8''
DUR 6-4 Reducing Union - 3/8'' to 1/4''
DUR 6-5 Reducing Union - 3/8'' to 5/16''
DUR 8-2 Reducing Union - 1/2'' to 1/8''
DUR 8-4 Reducing Union - 1/2'' to 1/4''
DUR 8-6 Reducing Union - 1/2'' to 3/8''
DUR 10-6 Reducing Union - 5/8'' to 3/8''
DUR 10-8 Reducing Union - 5/8'' to 1/2''
DUR 12-4 Reducing Union - 3/4'' to 1/4''
DUR 12-6 Reducing Union - 3/4'' to 3/8''
DUR 12-8 Reducing Union - 3/4'' tp 1/2''
DUR 12-10 Reducing Union - 3/4'' to 5/8''
DUR 16-8 Reducing Union - 1'' to 1/2''
DUR 16-12 Reducing Union - 1'' to 3/4''

DUR3M-2M Reducing Union - 3mm to 2mm
DUR6M-2M Reducing Union - 6mm to 2mm
DUR6M-3M Reducing Union - 6mm to 3mm
DUR6M-4M Reducing Union - 6mm to 4mm
DUR8M-6M Reducing Union - 8mm to 6mm
DUR10M-3M Reducing Union - 10mm to 3mm
DUR10M-4M Reducing Union - 10mm to 4mm
DUR10M-6M Reducing Union - 10mm to 6mm
DUR10M-8M Reducing Union - 10mm to 8mm
DUR12M-6M Reducing Union - 12mm to 6mm
DUR12M-8M Reducing Union - 12mm to 8 mm
DUR12M-10M Reducing Union - 12mm to 10mm
DUR15M-12M Reducing Union - 15mm to 12mm
DUR16M-10M Reducing Union - 16mm to 10mm
DUR16M-12M Reducing Union - 16mm to 12mm
DUR18M-10M Reducing Union - 18mm to 10 mm
DUR18M-12M Reducing Union - 18mm to 12mm
DUR25M-18M Reducing Union - 25mm to 18mm
DUR25M-20M Reducing Union - 25mm to 20mm
DUR30M-18M Reducing Union - 30mm to 18mm
DUR30M-20M Reducing Union - 30mm to 20mm
DUR30M-25M Reducing Union - 30mm to 25mm
DUR32M-18M Reducing Union - 32mm to 18mm
DUR32M-20M Reducing Union - 32mm to 20mm
DUR32M-25M Reducing Union - 32mm to 25mm
DUR38M-20M Reducing Union - 38mm to 20mm
DUR38M-25M Reducing Union - 38mm to 25mm
DUR38M-30M Reducing Union - 38mm to 30mm
