Tube Insert

Connects fractional or metric Dk-Lok port with nylon or soft tube

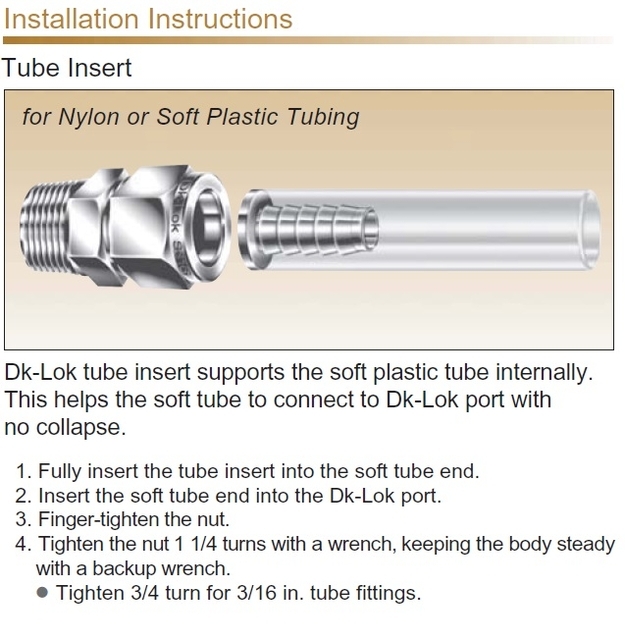

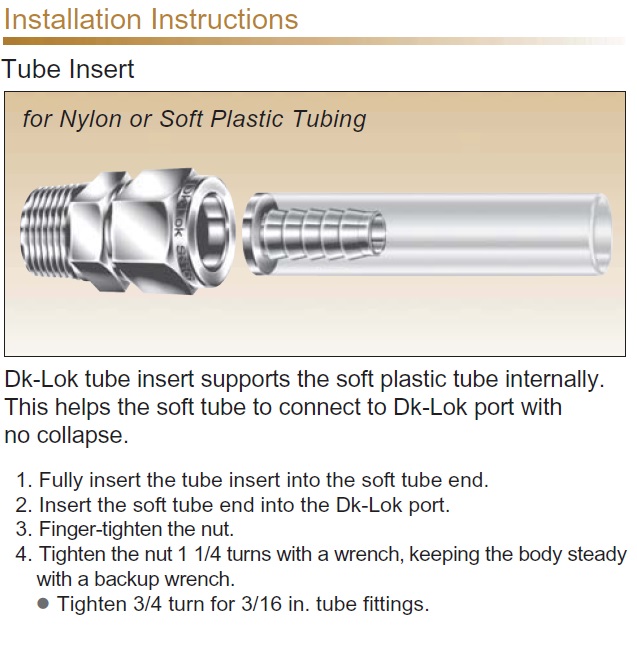

Click here for installation instruction

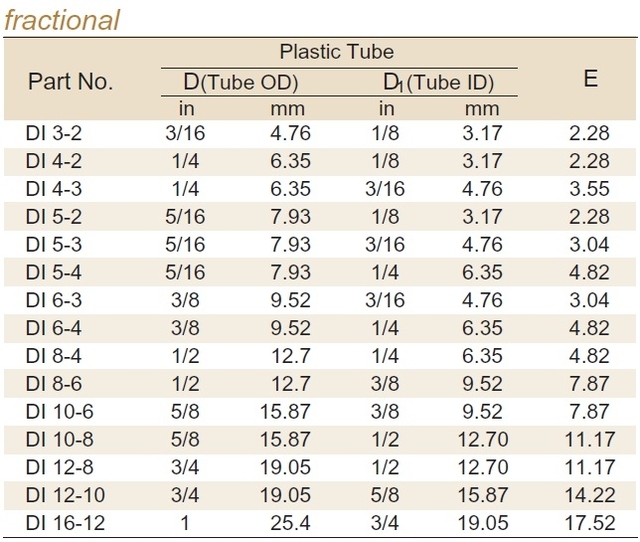

Table Fractional Table Metric Drawing Description
Article Description - Size Material Quantity
DI 3-2 Tube Insert - 3/16'' to 1/8''
DI 4-2 Tube Insert - 1/4'' to 1/8''
DI 4-3 Tube Insert - 1/4'' to 3/16''
DI 5-2 Tube Insert - 5/16'' to 1/8''
DI 5-3 Tube Insert - 5/16'' to 3/16''
DI 5-4 Tube Insert - 5/16'' to 1/4''
DI 6-3 Tube Insert - 3/8'' to 3/16''
DI 6-4 Tube Insert - 3/8'' to 1/4''
DI 8-4 Tube Insert - 1/2'' to 1/4''
DI 8-6 Tube Insert - 1/2'' to 3/8''
DI 10-6 Tube Insert - 5/8'' to 3/8''
DI 10-8 Tube Insert - 5/8'' to 1/2''
DI 12-8 Tube Insert - 3/4'' to 1/2''
DI 12-10 Tube Insert - 3/4'' to 5/8''
DI 16-12 Tube Insert - 1'' to 3/4''

DI 6M-4M Tube Insert - 6mm to 4mm
DI 8M-6M Tube Insert - 8mm to 6mm
DI 10M-8M Tube Insert - 10mm to 8mm
DI 12M-8M Tube Insert - 12mm to 8mm
DI 12M-10M Tube Insert - 12mm to 10mm
