Flanges ANSI B16.6

Pressure Class Ratings 150 to 2500
Nominal Flange Sizes NPS 1/2'' to 2''

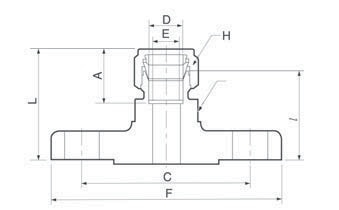

Connects ANSI flange to fractional tube

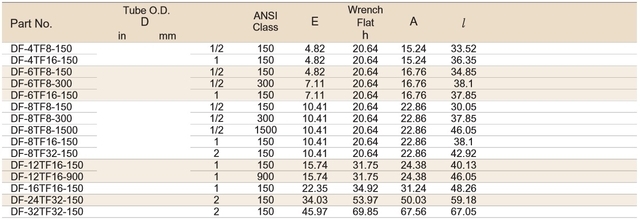

Article Description - Size Material Quantity
DF-4TF8-150 Flange - 1/4" O.D. to 1/2" ANSI
DF-4TF16-150 Flange - 1/4'' O.D. to 1'' ANSI
DF-6TF8-150 Flange - 3/8'' O.D. to 1/2'' ANSI
DF-6TF8-300 Flange - 3/8'' O.D. to 1/2'' ANSI
DF-6TF16-150 Flange - 3/8'' O.D. to 1'' ANSI
DF-8TF8-150 Flange - 1/2'' O.D. to 1/2'' ANSI
DF-8TF8-300 Flange - 1/2'' O.D. to 1/2'' ANSI
DF-8TF8-1500 Flange - 1/2'' O.D. to 1/2'' ANSI
DF-8TF16-150 Flange - 1/2'' O.D. to 1'' ANSI
DF-8TF32-150 Flange - 1/2'' O.D. to 2'' ANSI
DF-12TF16-150 Flange - 3/4'' O.D. to 1'' ANSI
DF-12TF16-900 Flange - 3/4'' O.D. to 1'' ANSI
DF-16TF16-150 Flange - 1'' O.D. to 1'' ANSI
DF-24TF32-150 Flange 1-1/2'' O.D. to 2'' ANSI
DF-32TF32-150 Flange - 2'' O.D. to 2'' ANSI
